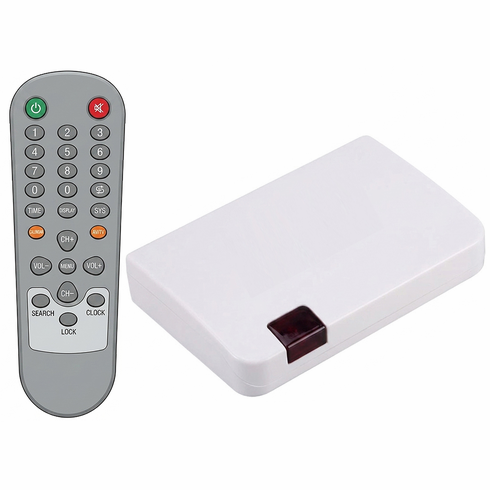

Universal RF Coax To Composite Video Audio Demodulator TV Tuner For NTSC PAL System

Universal RF Coax To Composite Video Audio Demodulator TV Tuner For NTSC PAL System
This universal RF to composite A/V demodulator is designed to convert those coax TV signals such as cable TV or satellite channels, closed circuit TV channels or other RF modulated signals into composite RCA video audio formats for various applications such as displaying, recording, or further A/V broadcast and distribution.

This RF TV signal converter supports worldwide coax TV channel frequencies including NTSC, PAL B/G, PAL D/K and PAL-I channel systems.

provides convenient decoding for extracting the video/audio embedded in the RF signals coming from cable outlets or cable boxes, satellite set top boxes or CCTV camera/DVR systems.

This device supports all the coax type A/V signal inputs from:

• TV/RF out port of the cable box or cable outlet for analog TV
• UHF/VHF channel broadcast or closed-circuit distribution
• Satellite receivers or other set top boxes with TV/RF out ports
• Modulated CCTV surveillance system
• Cable radio or cable FM station
• RF video modulators used in MATV setup

Easy Setup
Simply plug the coax cable from the source into this demodulator and perform an initial TV channel scan by pressing the search button on its IR remote control.

Universal Analog TV Tuner With RCA Video Audio Output
The RF input of this TV tuner converter supports worldwide RF TV channel frequencies including NTSC, PAL B/G, PAL D/K and PAL-I channel systems.

It works for all regions in the world and able to decode all standard analog cable TV channels within the range of 48.25 to 883.25MHz.

Full-Frequency UHF VHF CATV Channel Decoding
This RF coax demodulator doubles as an external TV tuner for analog TV signals. It has a full-frequency analog TV tuner and able to decode all standard TV channels from cable outlets, set top boxes and video modulators.

This TV tuner unit can also decode those coax type TV outs(CH3/CH4 out) from satellite receivers, cable box, video game consoles and other set top boxes into separate RCA video audio feeds.

Easy Add-On TV Tuner Module
This coax RF demodulator can be an external TV tuner module for video monitors, projectors, DVR systems or all other video equipments that do not have RF coax inputs.

Great add-on item for expanding their video equipments with a new RF/coax input.

Video Audio Capturing
The decoded video/audio feed for the selected cable TV or satellite TV channel can be fed into DVD recorder, DVR or other video capture devices.

Great TV Channel Audio Extractor.
This RF TV tuner demodulator can extract the audio sound embedded from the TV channels to standard RCA format for further distribution.

For those who got tired of the low-volume TV speakers, this external TV tuner box gives users the capability to play or record the decoded TV channel sound through their favorite amp, receiver, headphone, DVR or home theater system for better sonic experience.

IR Remote Control
This external TV tuner can be fully operated and controlled via remote control.


Video Audio Extension Over Coax Cable
This RF demodulator can also be combined with ours or other RF modulator so they can be used as a video/audio over coax cable extender kit for surveillance DVR video, multimedia center, etc.

• Universal RF coax demodulator for converting the RF coax TV signals into composite RCA video audio format for output.
• Decode all analog TV channels, satellite RF output and other modulated outputs.
• Supports worldwide broadcast TV standards including NTSC,PAL B/G, PAL D/K, PAL-I.
• Easy replacement solution for TVs with broken coax tuner inputs.
• External add-on TV tuner module for LCD projector, monitor, video player or video recorder without coax inputs.
• Supports all coax signals coming from cable outlets, cable boxes , satellite receivers, video modulators, game consoles, set top boxes or modulated CCTV security systems.
• Premium external TV tuner module for MATV/SMATV systems used in campus, classrooms, hotels, hospitals, sports bars or restaurants.
• Full-frequency analog TV channel support from CH2 to CH139.
• Advanced video processor with digital comb filter for smooth video/audio output.
• Premium de-Interlacer with low noise reduction technology adopted for clear and sharp images with fine details.
• Easy operation control via IR remote control.
• Multiple of these RF demodulator/tuner units can work together with video wall system or split-screen video processor to form a large-scale display system or display multiple TV channels on one screen at the same time
• Great RF coax to analog audio decoder for streamline setup with new home A/V receiver or home theater system.
• Perfect for integration with existing closed-circuit TV system and works with quad video processors, multiplexers, and DVR's.
• Automatic video/audio gain control for compensating the input signal level variation for the best broadcast quality performance.
• Can also be combined with ours or other RF modulator so they can be used as a video/audio over coax cable extender kit for surveillance video, multimedia center, etc.

• Video System Support: NTSC,PAL B/G, PAL D/K, PAL-I
• Channel Frequency Range: CH1 to CH139 (48.25 to 885.25 MHz)
• RF Input Level: -5 to +30 dbmv
• Video Output Level: 1Vp-p +/- 0.2Vp-p (75 Ohm)
• Audio Output Level: 0.755Vp-p +/- 0.2Vp-p (600 Ohm)
• Noise Level:  10db (max)
• RF Input Connector: F-Type female x 1
• Video Audio Output: HDMI female x 1
• Channel/Volume Operation:  By IR remote controller
• Power Consumption: 1.8W
• Power Supply: AC 110V to 240V input with DC 5V 1A output

• Coax RF to RCA video demodulator
• IR remote
• AC/DC power adapter
• User manual
